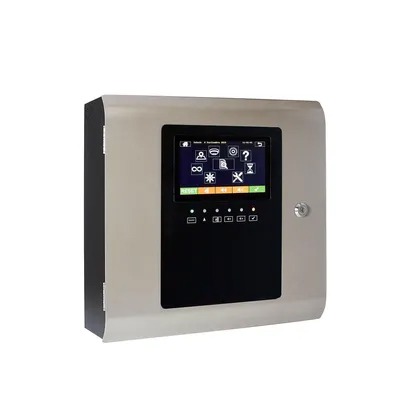

The Series-900 Control Panel is an intelligent analogue addressable fire alarm and detection control system which has been designed for the protection of more demanding applications. The control Panel AS-901-FAP/A is a modular system between 2 and 6 loops and through Extension unit AS-901-FAP/B, which have a capacity between 2 and 6 loops per enclosure, it is possible to obtain a system of up to 40 loops with 240 addresses each, providing the ideal solution for the protection of medium and large installations between 480 and 9,600 devices. The AS-901-FAP/A control panel has an 8” touchscreen display that offers a comfortable panel programming and an easy interaction with the users. All the operations are intuitive and are also provided with different contextual help system menus on the screen
